Double Pitch Attachment Chain
double-pitch-attachment-chain-2
U.S. Tsubaki Double Pitch conveyor chains are available with standard bent or straight type attachments on one or both sides. Extended pin attachments are also available from our Service Centers. Many assembled chains and components are stocked for quick delivery.
All dimensions are nominal values and for reference only /Asset/Double-Pitch-Attachment-Chain.JPG
LAMBDA Conveyor Chain is ideal for "clean" applications, where machines and conveyed materials must be free from ' contact with oil, or when lubrication is difficult. If product con tamination is a concern, if lubrication is difficult, or if you simply want to reduce maintenance costs, choose LAMBDA Chain from U.S. Tsubaki.
Select the LAMBDA Chain that's right for your operation
Standard LAMBDA Conveyor Chain works in temperatures up to 302°F, with a wide range of sizes and types for special applications.
Better than ever for lube-free applications
Double Pitch Attachment Chain
(144) DOUBLE PITCH ROLLER CHAINU.S. Tsubaki Double Pitch conveyor chains are available with standard bent or straight type attachments on one or both sides. Extended pin attachments are also available from our Service Centers. Many assembled chains and components are stocked for quick delivery.
- Attachments can be spaced as desired upon request. For even number of spacing, attachments will be fitted on pin link unless otherwise specified.
- Spring clip type connecting links will be provided for C2040 - C2060H and C2042 - C2062H.

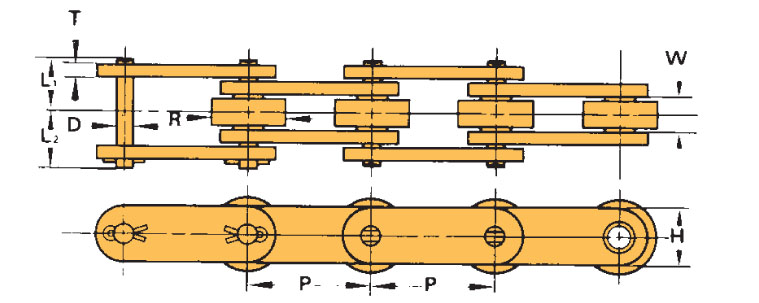

- Dimensions O, O1 and G show actual hole diameter.
All dimensions are nominal values and for reference only /Asset/Double-Pitch-Attachment-Chain.JPG
Double Pitch Conveyor Lambda Chain
Lube-free Conveyor Chain- Maintenance-free
- Even longer wear life
- Increased operating temperatures
- Reduce maintenance costs
- Eliminate product contamination
- Reduce downtime
- Increase sprocket life
LAMBDA Conveyor Chain is ideal for "clean" applications, where machines and conveyed materials must be free from ' contact with oil, or when lubrication is difficult. If product con tamination is a concern, if lubrication is difficult, or if you simply want to reduce maintenance costs, choose LAMBDA Chain from U.S. Tsubaki.
Select the LAMBDA Chain that's right for your operation
Standard LAMBDA Conveyor Chain works in temperatures up to 302°F, with a wide range of sizes and types for special applications.
Better than ever for lube-free applications
- Outlasts our former LAMBDA Chain up to twice as long in temperatures up to 140°F.
- Cost-effective, maintenance-free conveyor chain for your applications.
- A variety of attachments to meet your needs.
- Outstanding performance in temperatures up to 302°F.
